Beaulieu Park Station: A vision-led case study in what’s still missing
Beaulieu Park had vision, investment, and integrated planning. But it didn't deliver the sustainable outcomes vision-led planning promises.
Just a few months ago, a new train station opened in Britain. Beaulieu Park Station represents, on paper, everything that vision-led planning calls for: integrated transport and housing planning and investment in sustainable infrastructure. The station supports more than 14,000 housing units, with planning documents claiming that 70% is unlocked thanks to the new rail station.
Yet something remarkable has happened. This vision-led scheme has attracted little celebration from those who champion vision-led approaches to planning. Understanding why reveals something fundamental about what vision-led planning actually requires to deliver the outcomes we want.
Negative value for money in pursuit of the vision
The transport vision for Beaulieu Park is clear: new residents will bypass the congestion of Chelmsford town centre (2.6 miles to the south-west) and drive straight to a new station. New cycling lanes and a bus line are proposed, but wiggly routes and great distances mean these will be far less attractive than driving.
The business case relies heavily on parking revenues and an impressive £20m in developer contributions. But from a value-for-money perspective, the scheme offers low—or even negative—value. Because the new station slows down busy trains into London, it creates significant time penalties for existing rail users.
In the business case, promoters counted parking revenue as a benefit to offset time disbenefits to existing passengers. But this treatment is inconsistent with Transport Analysis Guidance (TAG). Under TAG, user charges are simultaneously a benefit to the operator and a cost to users—they cancel out in welfare terms. If parking revenues reduce the subsidy burden on government, this should appear as a reduced cost to the public purse. The business case doesn’t present it this way.

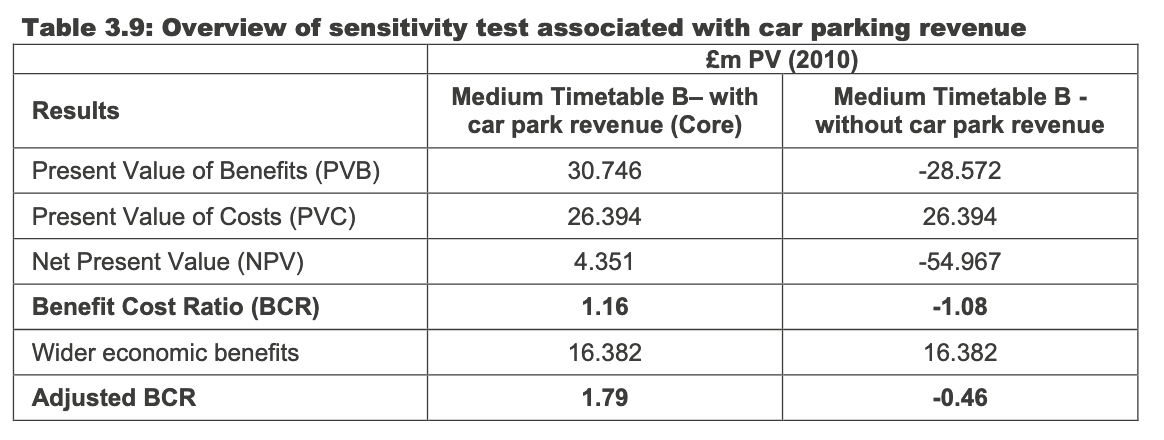

The table below from the business case shows this clearly: the ‘core’ BCR on the left appears marginally positive only by counting parking revenues as benefits—a treatment inconsistent with TAG. The sensitivity test on the right, which removes parking revenues, reveals negative value for money from a welfare economics perspective.
But visions are not about value for money, that is exactly the point. They are about, well, the vision.
Why this vision doesn’t satisfy
The problem is not that Beaulieu Park lacked vision - it’s that the vision it delivers isn’t the one that advocates of sustainability want to see. The scheme will induce more driving, not less. It pushes people further from desirable destinations while making it easier for drivers to get around.

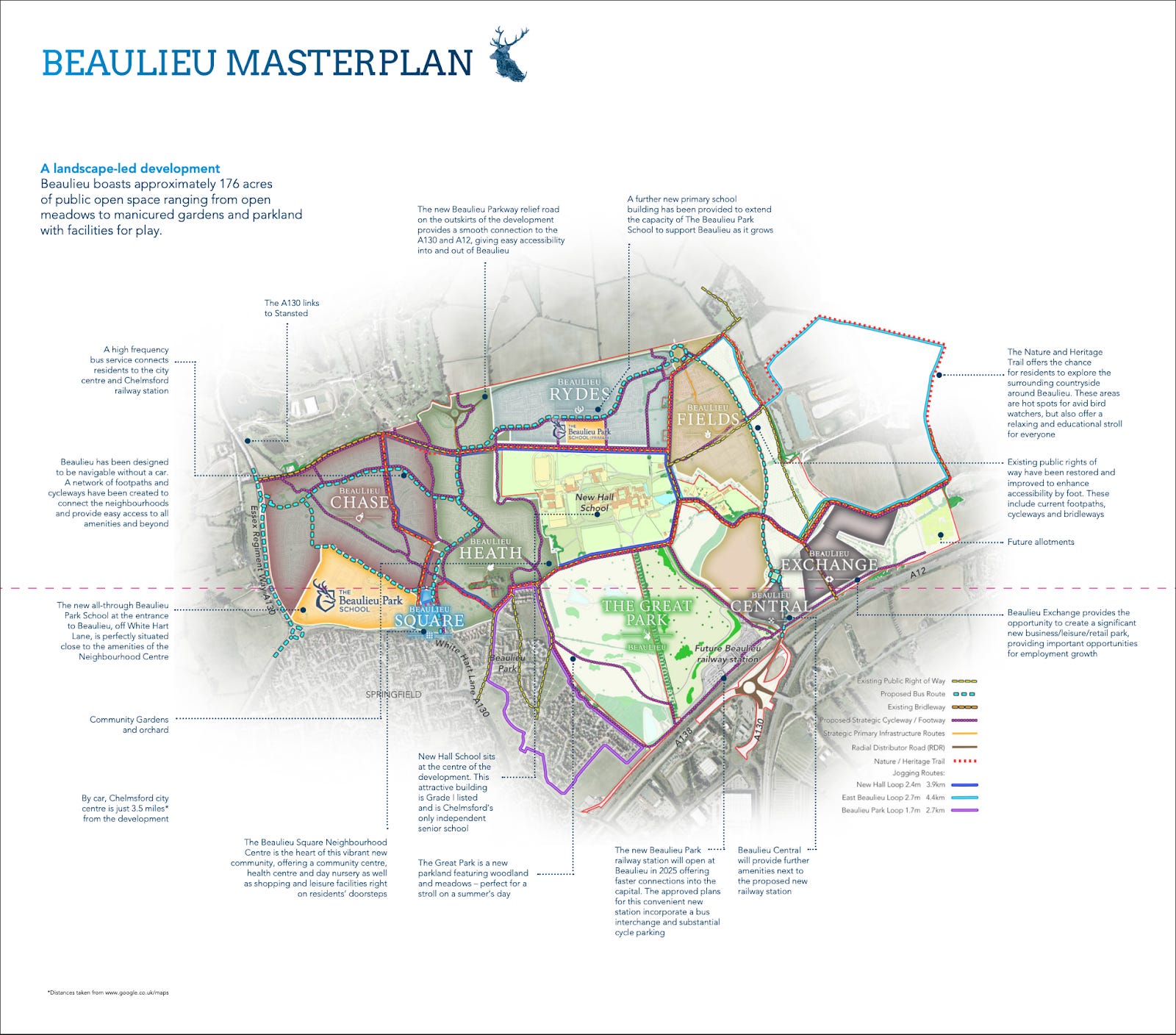

A park separates residential areas from the station and planned commercial quarter. Low densities make walking and cycling unattractive, even with segregated infrastructure.

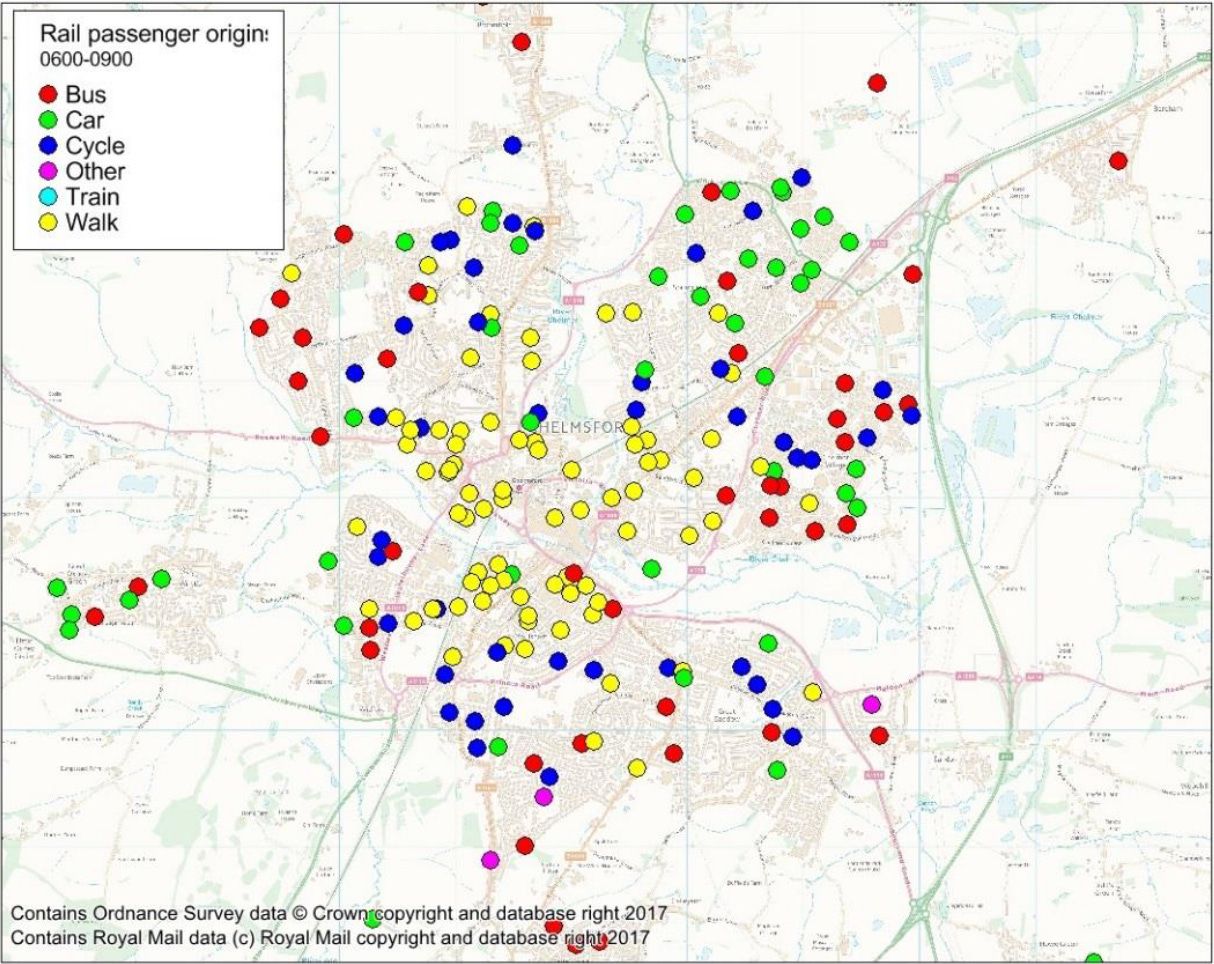

Movement patterns around the existing Chelmsford station show the majority of users arrive by foot, bicycle, or bus. But the new development will do nothing to improve their journeys.
People who currently walk, cycle, or use public transport to reach Chelmsford station will see no improvements. If they have access to a car, they’re now more likely to switch to driving to the new station - behaviour they’ve avoided until now due to parking constraints at the existing station.
This raises the question: what does vision-led planning actually require to deliver sustainable outcomes?
The missing ingredient isn’t vision or knowledge
One might argue that developers and planning authorities simply weren’t aware of sustainable development principles. But this explanation doesn’t hold. The Essex Design Guide from 2005 has many of the sustainability principles that are now discussed at the national levels. It states, for instance, that developments near train stations should have high densities to allow more people to access stations on foot.
The new development doesn’t follow this advice. The immediate surroundings of the station are completely free of development, and access routes favour driving over sustainable modes.
The government was willing to invest more than £240m in infrastructure, in addition to £20m in developer contributions. Clear guidance existed on how to deliver sustainable development. So why didn’t we get it?
The real barrier: Planning system capacity
A sustainable alternative would have looked radically different. Instead of 14,000 homes spread across low-density greenfield sites, a significant proportion could have been built as higher-density development in Chelmsford town centre, closer to the existing station (which offers more than 10 trains per hour to London). This would provide sustainable access both to the railway and to destinations within Chelmsford. New development on the outskirts—at lower densities for those seeking more space—could then integrate with new cycling, walking and public transport routes to the existing station, rather than requiring new infrastructure to bypass it.
Such an alternative would consume less greenfield land, induce fewer car journeys, and provide more affordable housing.
But to achieve this would require significant planning resources from the Local Planning Authority. Intensifying and regenerating the town centre means coordinating multiple landowners, none of whom individually stands to benefit enough to drive the process forward. Unlike a greenfield site with a single developer, town centre regeneration requires sustained public-sector leadership and coordination.
The details of how Local Planning Authorities should enhance their capacity to plan intensification, and the details of such plans lies beyond my area of expertise. Nevertheless, it is possible to achieve and investing in planning capacity would have been a fraction of the £240m ultimately spent on new infrastructure, and the yearly maintenance budget.
The most telling feature of Beaulieu Park Station and associated development is that it changes nothing about existing places, precisely because this avoids the complexity of intervening in established areas.
So the barriers to sustainable development weren’t lack of funding or knowledge of best practice. The main barrier was the incapacity of the planning system to deliver the kind of regeneration required to build more houses, while utilising existing transport infrastructure.
Of course greenfield developments are key to increasing housing supply. But when greenfield sites are developed in isolation from existing towns and infrastructure—as happened at Beaulieu Park—they fail to deliver sustainable growth. The problem isn’t greenfield development itself, but the planning system’s inability to integrate it with regeneration of existing urban areas.

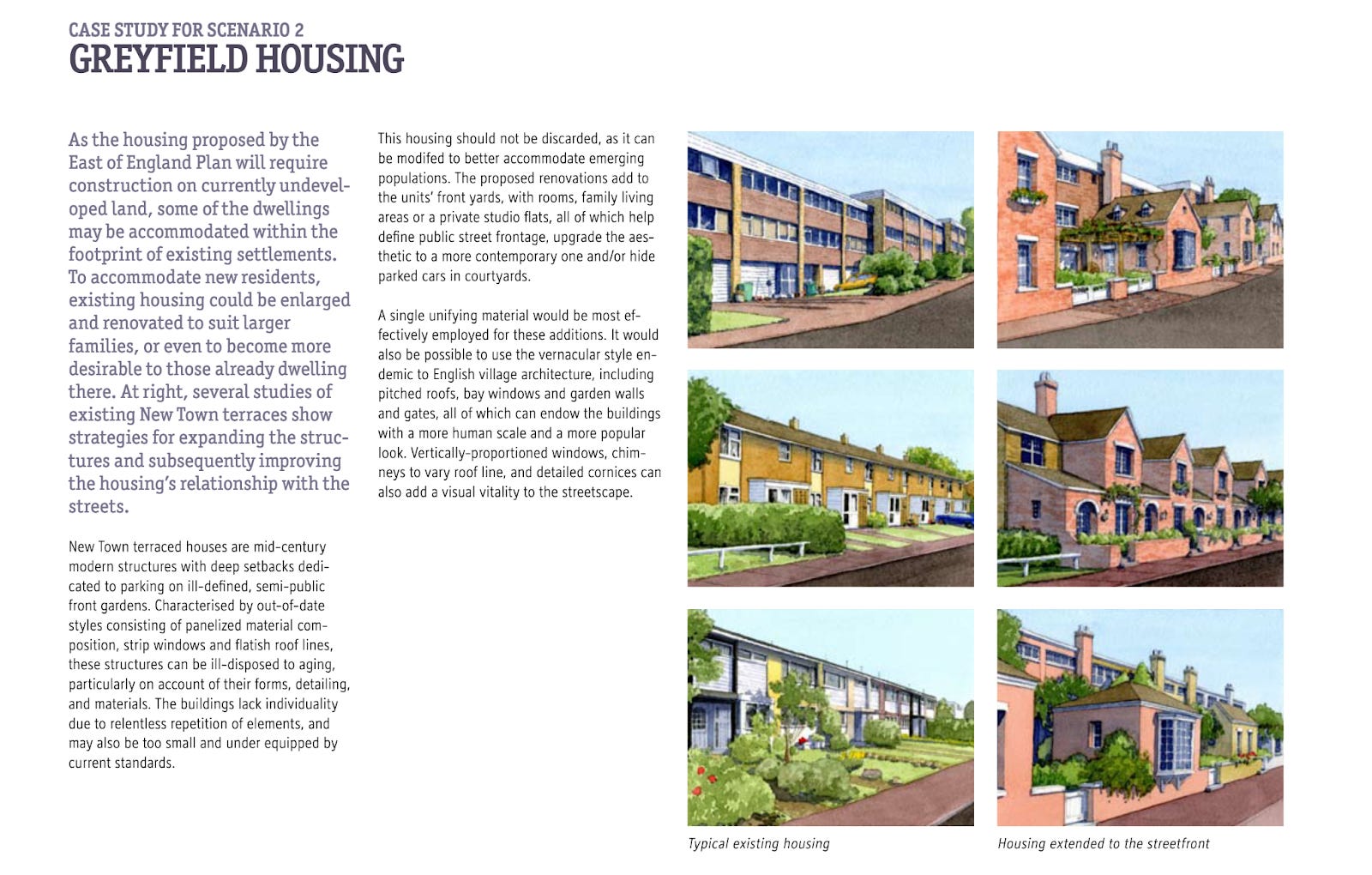

The 2008 Hertfordshire Guide to Growth, authored by Andres Duany (founder of the Congress for New Urbanism) with academic and local partners, outlines methods for intensifying existing built-up areas. Beyond developing car parks and underused industrial estates, the guide explores options to extend existing houses, adding more space and potentially more units. Delivering these interventions requires active, coordinated planning - precisely the capacity that Local Planning Authorities typically lack.
A success that limits future growth
From the perspective of Essex County Council, I’m assuming, Beaulieu Park is en route to becoming a big success. It has delivered a huge quantity of new housing, a new train station, and new roads that will avoid congestion in the short to medium term. This is genuinely positive considering the struggle elsewhere in the country to develop new homes.
In the long term, however, the development represents a constraint on growth. The increased reliance on cars means any additional development will require additional road space, or else congestion will become increasingly intolerable. Future investment in public transport could help, but public transport will always struggle to compete with driving in low-density developments with spatial design that isn’t conducive to efficient operations.
Even in the short term, the operation of municipal and utility services - SEND transport, waste collection, electricity, phone lines, garden maintenance - will all be more expensive than they would be in denser development.
We won’t achieve what we don’t measure
Even if planning authorities had the capacity to propose alternatives like town centre intensification, our economic appraisal systems aren’t designed to properly evaluate them.
Current transport appraisal focuses on the mode in question (a train station) and its direct impacts: user time savings, operating costs, pollution. It doesn’t count outcomes that matter for sustainable development: greenfield land consumed, health benefits from increased walking and cycling, long-term municipal service costs, or land value impacts.
We know denser developments encourage more walking, less driving, and lower emissions—all outcomes we can monetize. We could, in theory, compare alternative scenarios: intensive development in Chelmsford with integrated development on the outskirts, versus the current pattern where Chelmsford remains unchanged and development spreads outward. We could calculate land consumption, active travel propensity, health outcomes, and long-term service delivery costs for each option.
All of this is technically possible. But it’s not in our appraisal frameworks when transport investments are proposed or approved.
In the case of Beaulieu Park, however, the appraisal system wasn’t the main barrier. The traditional business case already showed low value for money. The problem was that the more sustainable alternative—requiring town centre regeneration—was never proposed in the first place. Even an ideal appraisal system that captured every sustainability benefit couldn’t have selected an option that didn’t exist.
In summary
The Beaulieu Park development had all the ingredients to become an exemplar of vision-led sustainable development:
It is near an existing train station with more than 10 trains per hour (in both directions), 30 minutes from London Liverpool Street station.
The government was willing to invest £240m in infrastructure in addition to significant developer contributions.
It is located in Essex, where principles of sustainable development have been included in the design guide since 2005.
Despite having these ingredients, the outcome fell short of sustainable development goals. The ambitious development will deliver more than 14,000 homes - a significant contribution to the nation’s housing shortage. But future growth is limited. With station access that prioritises cars there is a geometric limit to future development. In addition, instead of intensifying the existing town of Chelmsford - bringing destinations and homes closer together to reduce the need to travel - the development pushed people away, making transport sustainability harder to achieve.
The barrier to sustainable outcomes wasn’t money or vision, it was the capacity of the local planning authority to enable the regeneration that was required, without which any outcome would have been unsatisfactory.
In addition, our economic appraisal systems, which come into play when large investments in transport infrastructure are planned, don’t count many of the outcomes associated with sustainable development. Thus, even if we were presented with a better alternative, we would struggle to see its merits.
Vision-led transport planning, even when coded into legislation, doesn’t guarantee sustainable development if we don’t address two fundamental barriers:
First, planning authorities need sustained leadership capacity—the resources, tools, and powers—to coordinate regeneration in existing developed areas, not just to approve greenfield schemes with single developers.
Second, our appraisal systems need to evaluate integrated land-use and transport outcomes, not just mode-specific user benefits. This matters not only for selecting better schemes, but for building the evidence base that justifies investing in planning capacity in the first place.
Without both, we’ll continue to get vision-led developments like Beaulieu Park: genuinely ambitious, integrated, and long-term in their thinking—but driving us in the wrong direction.
Sources:
The relevant TAG section (A1.3)
Beaulieu Park Station Business Case
Hertfordshire guide to growth-2021
